Hospital Elevator

Comfortable Rise for all Patients

Hospital Lift

The main objective of the hospital lifts is easy and hassle-free transfer of the patients to medical facilities at a higher level of the hospital. Helix Elevators manufacturers an extensive range of car dimensions to fulfil the various modern hospital requirements.

These hospital elevators are specifically designed in a way to ease the vertical transportation of the patients in hospitals, nursing homes, clinics, and other medical institutions.

These elevators are exceptionally smooth and soundless even in heavy duty operation. The company uses sophisticated position measuring techniques to map the elevator shaft together with all floors levels, ensuring highly accurate levelling for safe and easy use. This particular safety and precaution is important for the elderly and disabled persons on wheelchairs and medical staff carrying patients at higher levels.

Speed

Available Rated Speed

0.63 / 1 MPS

Max Travel Height

Max Travel Height

66 M

Available Rated Capacity

Available Rated Capacity

1020 to 1768 kgs.

Max Person

Max Person

15 to 26 Passengers

  • Smooth and Secure
  • Electromagnetic Compatibility
  • Emergency Landing Device
Hospital Elevator

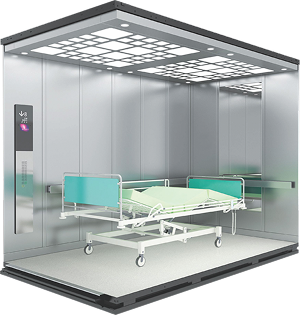

Stainless Steel Cabin

Stainless Steel Cabin

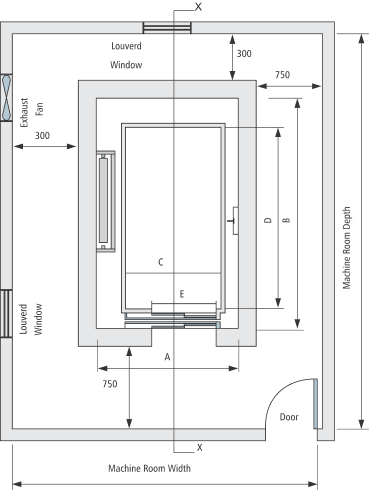

Hoistway Elevation Plan

Hoistway Elevation Plan

Hoistway Elevation Drawing

Hoistway Elevation Drawing

Automatic Centre Opening Door Lifts

Person Capacity Shaft-W Shaft-D Car-W Car-D Entrance
Kg A B C D E
15 1020 1900 3000 1000 2400 800
20 1360 2300 3000 1300 2400 900
26 1768 2600 3000 1600 2400 1000

Collapsible Door can be provided if required.

Automatic Telescopic Door Lifts

Person Capacity Shaft-W Shaft-D Car-W Car-D Entrance
Kg A B C D E
15 1020 1700 3000 1000 2400 800
20 1360 1950 3000 1300 2400 900
26 1768 2100 3000 1600 2400 1000
