Car Elevator
Available Rated Speed
0.30 / 0.70 / 1.00 MPS
Max Travel Height
30 M
Available Rated Capacity
250 to 4000 kgs.
Two Side Safety

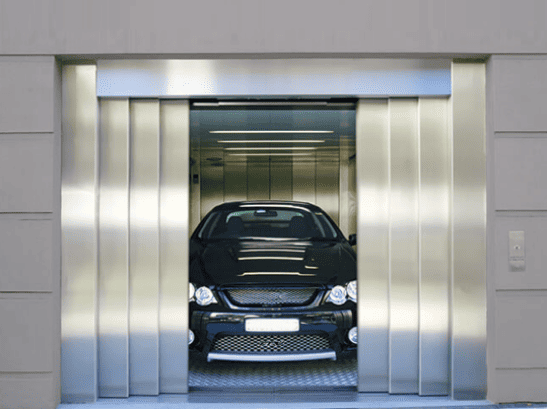

Center Opening Autodoor (Six Part)

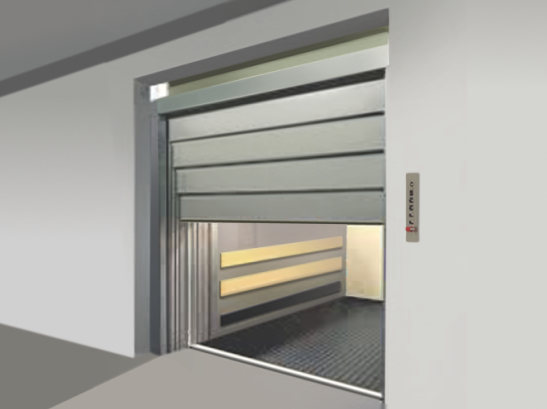

Vertical Autodoor

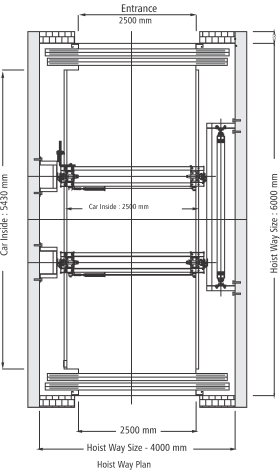

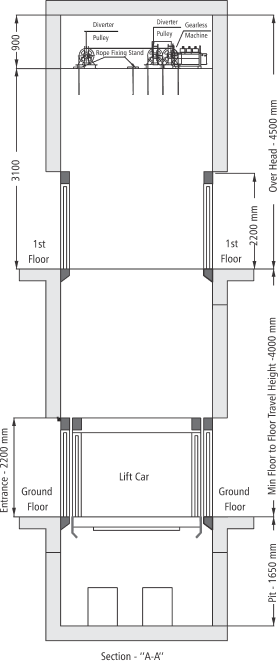

| Load (kg) | Car Inside (mm) | Lift Well (mm) | Entrance | Overhead | Pit | ||
|---|---|---|---|---|---|---|---|
| Kgs. | Width | Depth | Width | Depth | D/W | OH | Depth |
| 2500 kg | 2500 | 5000 | 3800 | 5700 | 2400 | 4500 | 1500 |
| 3000 kg | 2500 | 5400 | 4000 | 6000 | 2500 | 4500 | 1600 |
| 3500 kg | 2700 | 5500 | 4200 | 6200 | 2600 | 4800 | 1700 |
| 4000 kg | 2800 | 6000 | 4500 | 6800 | 2700 | 5000 | 1800 |
