Goods Elevator

Helix Elevators manufacturers robust and powerful goods elevators / freight elevators having very high load bearing capacities. The company is sure to take off a lot of loads from your shoulders. These goods elevators are designed to manage most demanding vertical transportation talk smoothly and without any hassle.

The raw materials used in these elevators are of superior quality and sourced from renowned brands, making them sturdy and capable of handling round the clock goods and freight movement. The goods elevators can be installed in any type of structure or building and are made to withstand extreme working environments.

The high-capacity, heavy-duty and explosion-protected goods elevators make sure that the goods flow smoothly in every condition.

Speed

Available Rated Speed

0.50 / 1.00, 1.50 MPS

Max Travel Height

Max Travel Height

66 M

Available Rated Capacity

Available Rated Capacity

1000 to 8000 kgs.

Main product applicable occasions

Factory Warehouse Shopping Center Housing Property Management Center

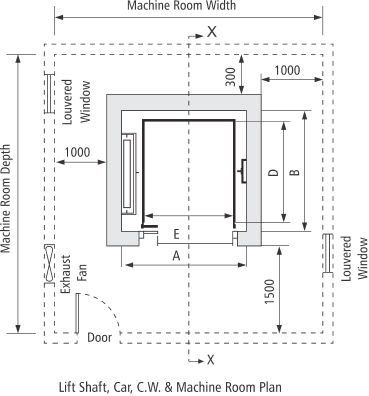

CAPACITY SHAFT-W SHAFT-D CAR-W CAR-D ENTRANCE LOAD KG SPEED MPS PIT DEPTH OVER HEAD
Kgs. (C) (D) (A) (B) (E) 500 - 3000 0.25 - 1.0 1600 4800
500 1900 1500 1100 1200 900
1000 2300 2100 1400 1800 1150
1500 2600 2300 1700 2000 1400
2000 2600 2800 1700 2500 1400 4000 - 5000 0.25 2700 7400
3000 2900 3300 2000 3000 1700
4000 3400 3400 2500 3000 1900
5000 3500 4300 2500 3600 1900
  • All Dimension are in mm.
  • These dimensions are based on vertical bi-parting doors, it may vary for collapsible or automatic door operation.
